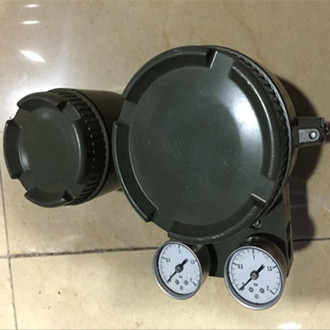

Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter




Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter

The PK200 current-to-pneumatic (I/P) converter offers a low-cost method to convert a milliamp input (4-20 or 10-50mA analog signals) to a proportional pneumatic (air pressure) output. The unit is designed for a broad range of process control applications, including those that feature pneumatic actuating equipment. The PK200 features built-in stainless steel input/output gauges. The reliable PK200 performs electronic feedback control while maintaining accuracy of ±0.5 percent of span and linearity of ±0.2 percent of span. Built with energy savings in mind, the PK200 consumes only 4 normal liters/minute (4 NL/min) air while providing output air capacity of 110 NL/min. PK200 complements Yokogawa's existing line of Quality Solutions for its North American customers: pressure and temperature transmitters, flowmeters, on-line analyzers, recorders, digital loop controllers and an entire family of distributed control systems.

The Model PK200 Current-to-Pneumatic Converter is used mostly to actuate diaphragm operated valves, air cylinder operated valves, power cylinders or other terminal elements. Beside these, it is used as a simple signal converter in hybrid instrumentation comprising electronic and pneumatic instruments.


Quick Details of Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter


  • Type: Current to Pneumatic converter
  • Place of Origin: Japan
  • Model Number: PK200
  • Brand Name: Yokogawa
  • Item: PK200
  • Input Signal 1: 4 to 20 mA
  • Input Signal 2: 10 to 50 mA changeable
  • Converter Application: Control valves
  • Converter Accuracy: ±0.5%
  • Air Consumption: 0.24 Nm3/hr
  • Standard output: 20 to 100 kPa
  • Doubled Output: 40 to 200 kPa
  • Ingress Protecton: IP54
  • Approvals: ATEX, FM, CSA

FEATURES of  Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter



- Highly accurate signal conversion with minimum effects from process environments

Stainless steel bracket, epoxy coating, and other optional specifications allow the PK200 to be used in a variety of applications.

- Highly reliable, accurate electronic feedback

- Energy-saving design for improved economy

Max. air consumption: 4 Nl/min when air supply pressure is 140 kPa
Max. output air capacity: 110 Nl/min when air supply pressure is 140 kPa

- Excellent operability by access to only one side of the product


PK200 Main technical Specifications of Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter

Linearity
±0.2% of span
Hysteresis
0.2% of span
Repeatability
0.1% of span
Input Signal
4 to 20mA DC /10 to 50mA DC
Air Supply Pressure
140kPa (Standard Output), 240kPa (Doubled output)
Air Consumption
Max. 4 Nl/min. or 0.24 Nm3 /hr at 140 kPa (20 psi) air supply pressure.
Output Air Capacity
Max. 110 Nl/min. or 6.6 Nm3 /hr at 140 kPa (20 psi) air supply pressure.
Output Signal
20 to 100kPa (Standard Output), 40 to 200kPa (Doubled output)
Operating Temperature Limits
-40 to 80 deg C (-40 to 176 deg F) (General use)
Supply Air, Output Signal, Output Gauge Connections
Rc1/4 or 1/4 NPT female
Electrical Connection
G1/2, G3/4, 1/2 NPT or 3/4 NPT female
Mounting
Surface or 2-inch pipe
Approximate Weight
2.8 kgs


Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter


YOKOGAWA PK200 Current-to-Pneumatic Converter

Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter

YOKOGAWA PK200 Current-to-Pneumatic Converter



YOKOGAWA PK200 Current-to-Pneumatic Converter


Ordering Models of Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter




PK200-A11    PK200-A21 PK200-A31    PK200-A41 PK200-A51
PK200-A12 PK200-A22 PK200-A32   PK200-A42    PK200-A52
PK200-A13   PK200-A23     PK200-A33  PK200-A43 PK200-A53
PK200-A14 PK200-A24     PK200-A34  PK200-A44 PK200-A54

Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter

PK200-A61   PK200-A71   PK200-A81 PK200-A91
PK200-A62   PK200-A72   PK200-A82 PK200-A92
PK200-A63   PK200-A73 PK200-A83 PK200-A93
PK200-A64 PK200-A74 PK200-A84 PK200-A94

Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter

PK200-C11   PK200-C21 PK200-C31 PK200-C41   PK200-C51
PK200-C12 PK200-C22 PK200-C32 PK200-C42 PK200-C52
PK200-C13   PK200-C23 PK200-C33 PK200-C43 PK200-C53
PK200-C14 PK200-C24 PK200-C34 PK200-C44   PK200-C54

Yokogawa PK200-A33 Converter PK200 Current-To-Pneumatic Converter

PK200-C61   PK200-C71 PK200-C81 PK200-C91
PK200-C62   PK200-C72 PK200-C82   PK200-C92
PK200-C63 PK200-C73   PK200-C83 PK200-C93
PK200-C64   PK200-C74 PK200-C84   PK200-C94
